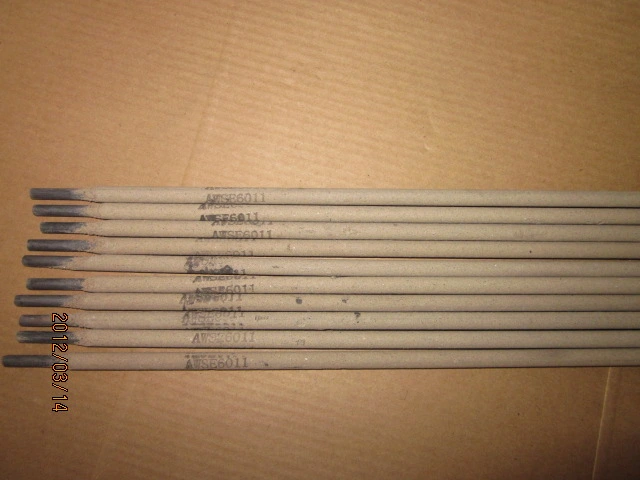

Welding Electrode AWS E6011
1. Carbon steel electrode
2. Suitable for both AC&DC
3. Goot at downwards welding
Welding Electrodes AWS E6011 is suitable for both AC and DC. The electrode is able to provide excellent welding technological performance because the arc is extra stable and spatter loss is negligible, the slag has good fluid and solidified slag is very easy to remove, the manipulate is free and restrike is easy. It can give smooth and beautiful ripples.
Application: Welding of general low carbon steel structures, Welding can be done in all positions, especially suitable for welding of steel sheets. For welding of irregular joints and even under unfavourable condition, it can also give good and fine weld
1. Carbon steel electrode
2. Suitable for both AC&DC
3. Goot at downwards welding
Welding Electrodes AWS E6011 is suitable for both AC and DC. The electrode is able to provide excellent welding technological performance because the arc is extra stable and spatter loss is negligible, the slag has good fluid and solidified slag is very easy to remove, the manipulate is free and restrike is easy. It can give smooth and beautiful ripples.
Application: Welding of general low carbon steel structures, Welding can be done in all positions, especially suitable for welding of steel sheets. For welding of irregular joints and even under unfavourable condition, it can also give good and fine weld
| C | Mn | Si | S | P | |
| Assured | < =0.20 | 0.30~0.60 | < =0.30 | < =0.035 | < =0.040 |
| General | 0.08~0.12 | 0.35~0.55 | 0.12~0.20 | < =0.030 | < =0.035 |
| Mechanical properties of all-weld specimens(%) | ||||
| Test Item | Rm(MPa) | Rel(MPa) | A(%) | Akv(J)-30C |
| Assured | ≥ 355 | ≥ 330 | ≥ 22 | ≥ 27 |
| General | 480~580 | 340~420 | 22~26 | 65~90 |
