Welding Consumables from Flux Cored Welding Consumables Welding Wire (E71T-1)
1. Excellent welding performance, soft and stable arc.

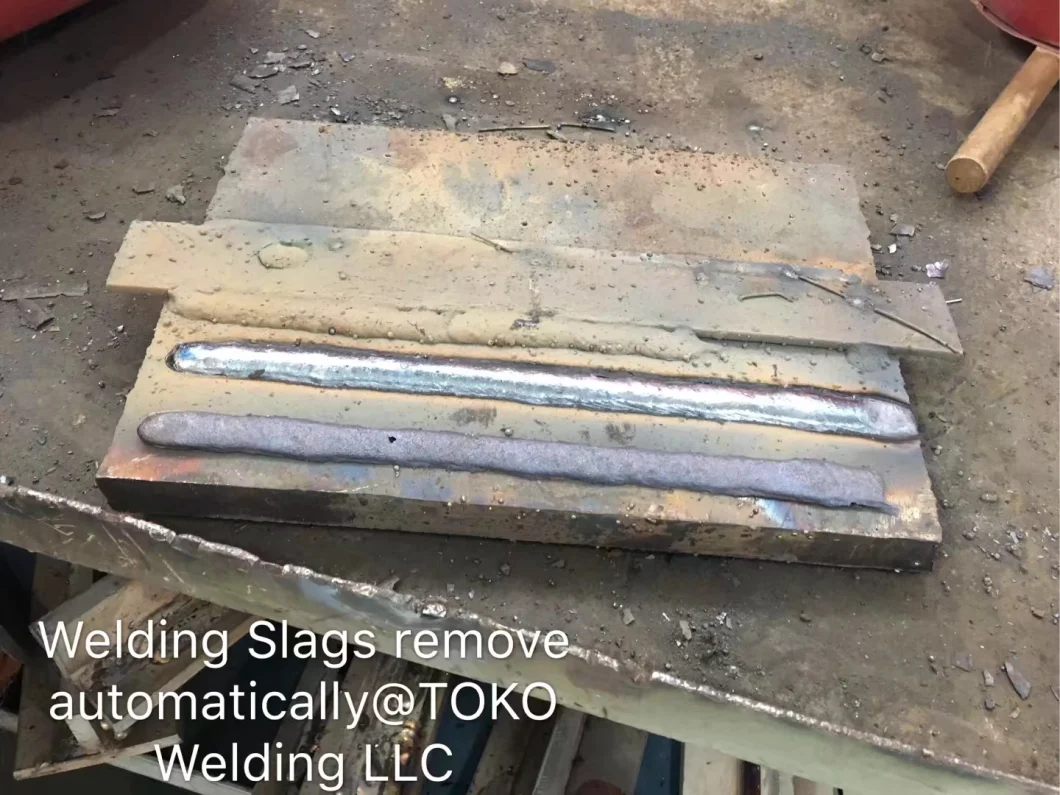

2. Low spatter loss, easy slag removal, Beatiful appearance of weld and high X-ray safty
3. Rutile type flux cored wire of 490Mpa high tensile steel
Instruction
1. Gas- Shielded:100% CO2 OR 75% Ar 25% CO2
2. When welding, the gas flow rate shoule keep between 15L/min and 25L/min
3.The oil stains and rust on the welding should be cleared away.
Chemical Composition of Deposited Metal
| C | Mn | Si | P | S | Cr | Ni | Mo | V | Cu | |
| Standard | ≤0.18 | ≤1.75 | ≤0.90 | ≤0.03 | ≤0.03 | <0.20 | <0.50 | <0.30 | <0.08 | <0.35 |
| ( AWS E71T-1) |
Machanical Properties of Deposited Metal
| YP Rel/ Mpa | Tensile Strength/ Mpa | Elongation % | Test Temp (oC) | Impact Energy | Average (J) | |||||
| Standard | ≥400 | ≥480 | >20 | -20 | ≥27 | |||||
| ( AWS E71T-1C) | ||||||||||
Reference Welding Parameter (DC+) & Voltage Range
| Specification | 1.2 | 1.6 | ||
| ( Diameter Size mm) | ||||
| Volt | 15-35 | 22-42 | ||
| Amp | 120-320 | 180-400 | ||
| L/min | 15-25 | 15-25 | ||
Application
Shipbuilding, Offshore, bridge, pressure vessal and general fabrications etc.
