AWS A5.1 E6011 Rutile- cellulosic potassium Type Electrode ISO 2560-B-E4311 A | |
 |

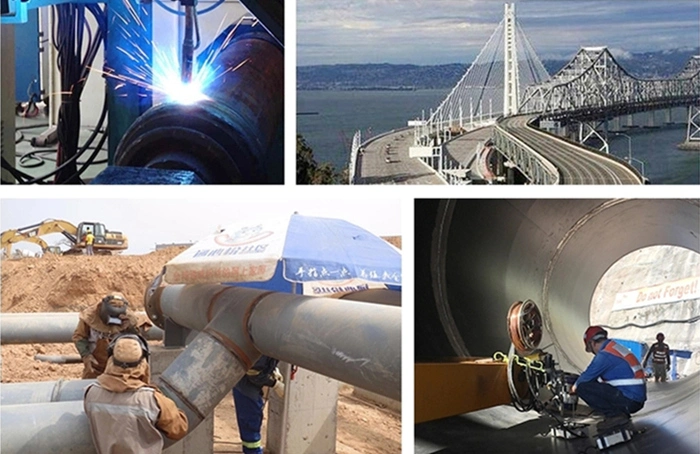

| APPLICATION |  Tianqiao welding electrode E6011 is suitable for welding of low carbon steel structure as pipeline, shipbuilding and bridge etc. |
| FEATURES |  *rutile-cellulosic potassium type electrode; *for all-position (especially for vertical-down) with AC and DC+; *excellent welding performance as stable arc, little spatter, easy slag removal and reignition-ability etc. *better molten pool control, stronger arc force and deeper penetration at vertical-down position. |
| Welding Positions: | PA, PB, PC, PD, PE, PF, PG |
| Chemical composition of Deposited Metal(%) | |||||
| Chemical composition | C | Mn | Si | S | P |
| Test Value | ≤0.20 | 0.30-0.60 | ≤0.30 | ≤0.035 | ≤0.040 |
| Mechanical Properties of Deposited Metal: | ||||
| Test Item | R m (MPa) | R eL(Mpa) | A(%) | KV 2(J) |
| Gurantee Value | ≥420 | ≥330 | ≥22 | ≥27(-30ºC) |
| Reference Current(AC, DC) | |||
| Electrode dia(mm) | φ3.2 | φ4.0 | φ5.0 |
| Welding Current(A) | 80-140 | 130-210 | 170-230 |
| Note: If the electrodes become damp, they must be baked under 80 ºC for 1.5 hours before weldin | |||
  |
 Our welding electrode have been exported to Germany, Poland, Italy, France and many other countries in Europe and South East Asia. Gained good feedbacks from them and established longterm partnership. Which market are you from pls?  |
 Our factory: Shijiazhuang Tianqiao Welding Materials Co., Ltd was founded in 2007, with strong technical force and complete product equipement and gained the ISO certification. Our main products are: mild steel carbon welding electrodes; low alloy steel welding rod; heat-resistant steels welding electrode; low temperature steel welding rod; stainless steel welding electrode; cast iron welding rod, etc. Our welding electrode have excellent performance: stable quality, elegant welding molding, good slag detachability, good anti-rust ability, anti-stomata and crack, stable deposited metal mechanics performance.  |
FAQ:
1. Maufacturer?
We are a professional factory with 20+ years experience.
2. MOQ?
1Ton for stainless steel & cast iron welding rod ;
25Tons for other types, mixed specification is ok.
3. OEM packing with your own brand?
Yes, it's available. Cost depends on your design.
4. Delivery time?
Generally it is 5-10 days.
Need longer time if you customize your product or packing.
5. Is sample available ? free ?
Yes and it's free. But the freight cost paid by your side.
6. Terms of payment pls?
T/T. This is negotiable.
